ES&S EVS 6.4.0.0 / DS200

A source-linked pilot dossier for the DS200 within the EAC-certified EVS 6.4.0.0 configuration, with historical change records, separately scoped optional modem models and vulnerability reviews, and a labeled Washington deployment observation.

Federal certificate ESSEVS6400VVSG 1.0VSTL: Pro V&V, Inc.Editorial: published r9

Components12all source-linked

Hardware facts133 explicit unknowns

Change records6field status kept separate

Findings/statuses4version-scoped

Archived sources40local hash verified

Dossier section

Source-bounded topology

Documented topology, controls, and unknowns

Expected, documented, and observed configurations remain separate. Physical port capability is not treated as an active connection, and public-Internet reachability is shown only when a reviewed source says so.

Safe public evidence boundaryReviewed 2026-07-28

For EVS 6.4.0.0, the EAC scope defines Regional Results as a separate application at a regional sending site, and Pro V&V tested transmission of DS200 result files through Regional Results over a VPN. The reviewed exact-version text does not establish that the DS200 itself was the VPN endpoint or that the VPN used the public Internet. Older federal and state records separately document a Unity 3.4.0.0 wireline SFTP reference design, optional cellular hardware families, and a Michigan EVS 5.3.2.0 diagram that explicitly shows DS200 units and Regional Results connected through a wireless carrier and the Internet without proving current certification, activation, field use, or an election transmission.

The module publishes roles, high-level paths, connection media when established, and evidence boundaries. It excludes IP addresses, credentials, VPN parameters, keys, APNs, SIM identifiers, carrier accounts, device identifiers, and jurisdiction routing details.

4 sourced configuration views7 source imagesNo field-observed topology collected1 scoped source shows an Internet path

expected layervstl test configurationdocumented partial

EVS 6.4.0.0 Regional Results test path

Pro V&V tested DS200 results transmitted by the separate Regional Results application through a VPN to the EMS. The source establishes the end-to-end result workflow but not a direct DS200 network session or the local handoff medium from the tabulator to the Regional Results client.

Topologyresults transmission service

External pathway evidenceExternal transport documented after a separate handoff

2 highlighted connections

The exact EVS 6.4 test record documents Regional Results sending result files through a customer-dedicated VPN to Electionware EMS. The reviewed passage does not make the DS200 the VPN endpoint or say that the VPN traverses the public Internet.

Public InternetNot documented in this configuration

Dossier connectionSeparate result handoff; dossier device is not the endpoint

Path origin

External transport / Internet-linked systems

Receiving systems

Highlighted connections

Evidence classification only. It does not establish a live connection, current deployment, attack path, or security finding.

This is an exact-version VSTL test path. The DS200-to-Regional Results handoff medium, public-network transit, jurisdiction deployment, and election use are not established.

U.S. Election Assistance Commission: EVS 6.4.0.0 Certificate and Scope of Conformanceeac-evs-6400-scope@2026-07-19

Pro V&V, Inc.: ES&S EVS 6.4.0.0 Certification Test Report TR-01-01-ESS-2023-01.03provv-evs-6400-test-report@2026-07-19

Preparing the interactive topology…

Accessible topology indexSelect a node or connection without using the canvas.

Select a node or connectionMirrors the interactive topology

documentedEncrypted unofficial result files

The EAC scope states that Regional Results securely transmits encrypted unofficial results collection files.

documentedCustomer-dedicated network

The certified Regional Results description specifies a customer-dedicated network.

not publicly establishedDirect DS200 network session

The reviewed exact-version passages do not make the DS200 itself the VPN endpoint or identify a direct scanner-to-network connection.

Operational details withheld

No addresses, credentials, VPN settings, keys, APNs, SIM data, carrier accounts, or site-specific routing information are collected or shown.

A successful VSTL system test is not evidence that a jurisdiction enabled Regional Results, used the same network design, or transmitted results in a particular election.

U.S. Election Assistance Commission: EVS 6.4.0.0 Certificate and Scope of Conformanceeac-evs-6400-scope@2026-07-19

Pro V&V, Inc.: ES&S EVS 6.4.0.0 Certification Test Report TR-01-01-ESS-2023-01.03provv-evs-6400-test-report@2026-07-19

Source diagrams and pagesExpand any image; scope and caveats stay attached.

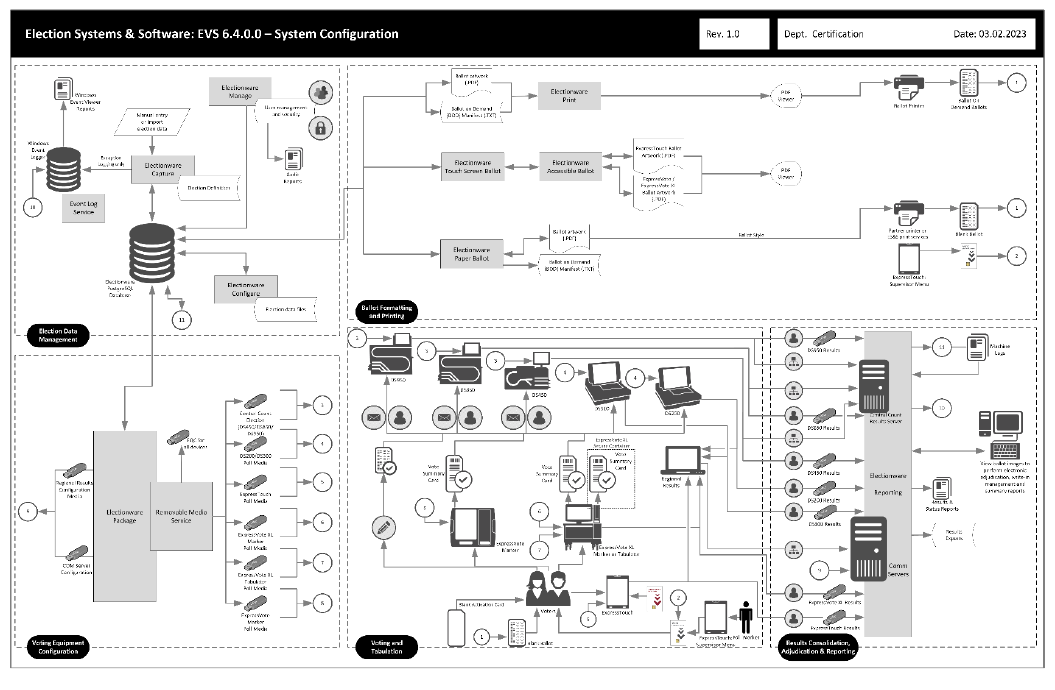

source topology diagramEVS 6.4.0.0 certified-system overview diagram

The system-level figure contains many EVS components and paths. It does not prove that every component or connection is present in a DS200 deployment.

EAC scope PDF page 4, document page 3

U.S. Election Assistance Commission: EVS 6.4.0.0 Certificate and Scope of Conformanceeac-evs-6400-scope@2026-07-19

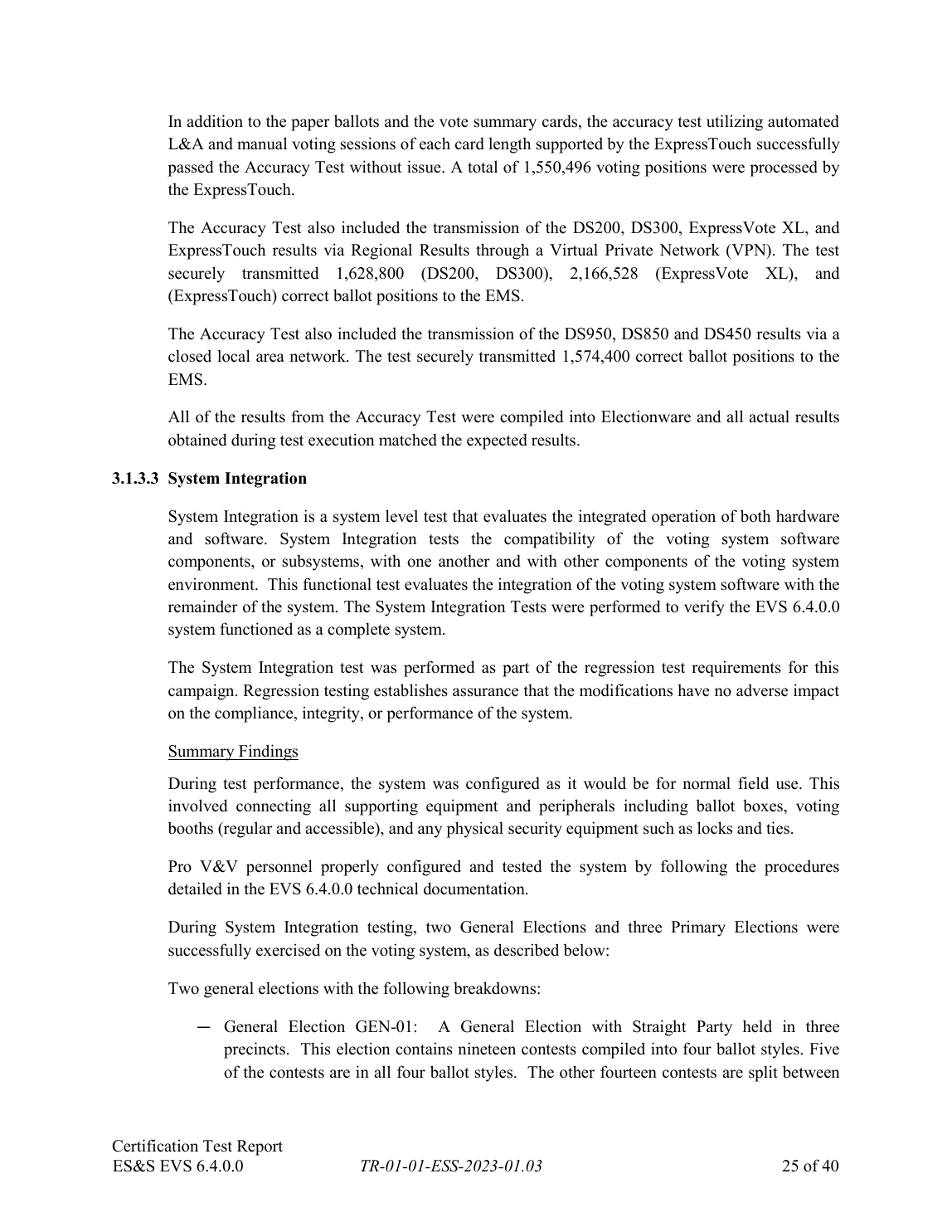

source document pagePro V&V EVS 6.4.0.0 result-transmission accuracy-test statement

This is evidence of a laboratory test configuration and successful result transfer, not a field deployment or direct DS200 network-session record.

Pro V&V test-report PDF page 30, report page 25

Pro V&V, Inc.: ES&S EVS 6.4.0.0 Certification Test Report TR-01-01-ESS-2023-01.03provv-evs-6400-test-report@2026-07-19

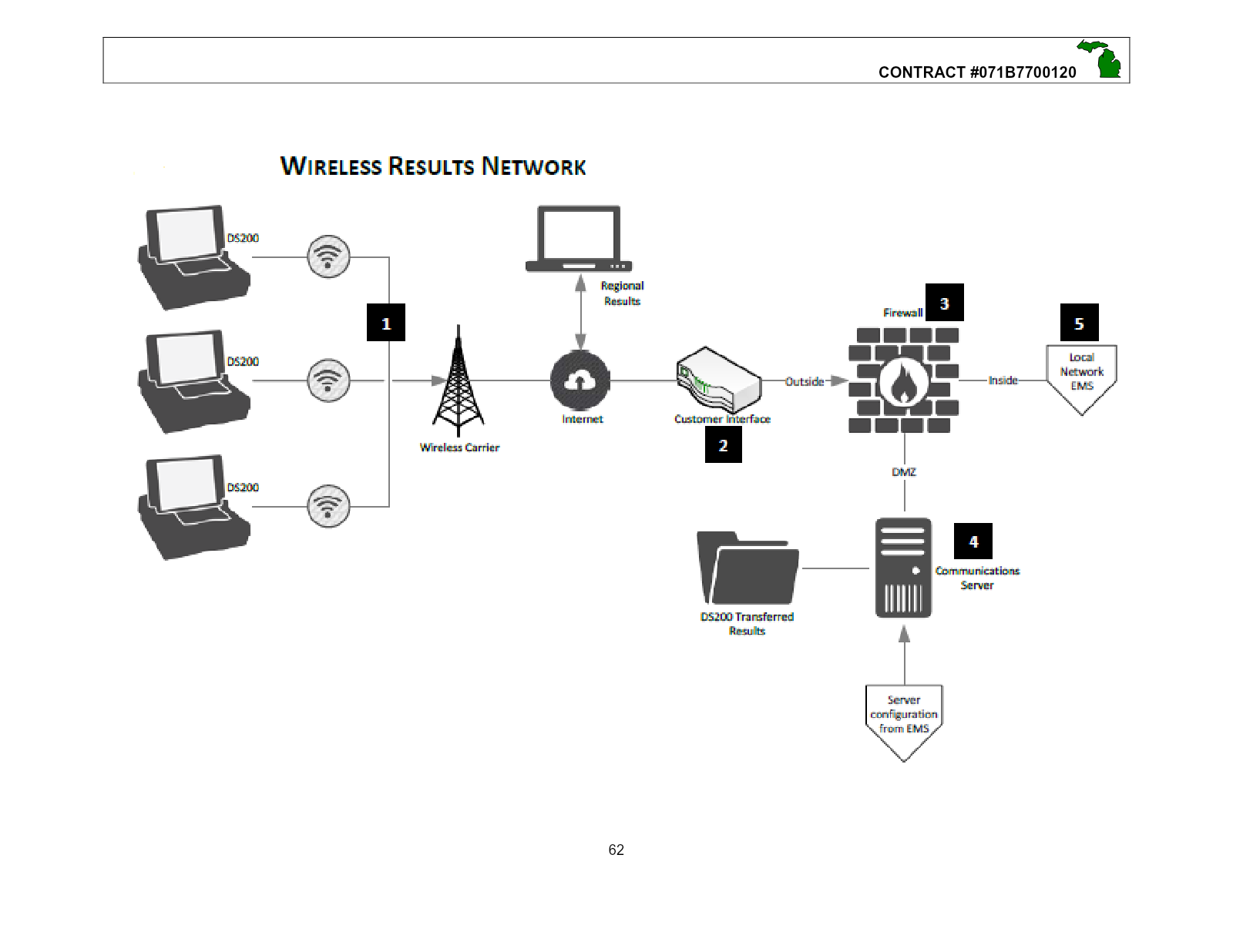

source topology diagramMichigan contract exhibit: historical DS200 wireless results path through the Internet

The diagram explicitly shows an Internet segment, but it belongs to a historical Michigan procurement response and does not establish EVS 6.4.0.0 certification, a current county topology, an installed modem, an active connection, or election use.

Michigan contract PDF page 101, contract page 62, Wireless Results Network

State of Michigan Department of Technology, Management & Budget; Election Systems & Software: Contract 071B7700120: Voting System Hardware, Firmware, Software and Servicemi-ess-voting-system-contract@2026-07-21

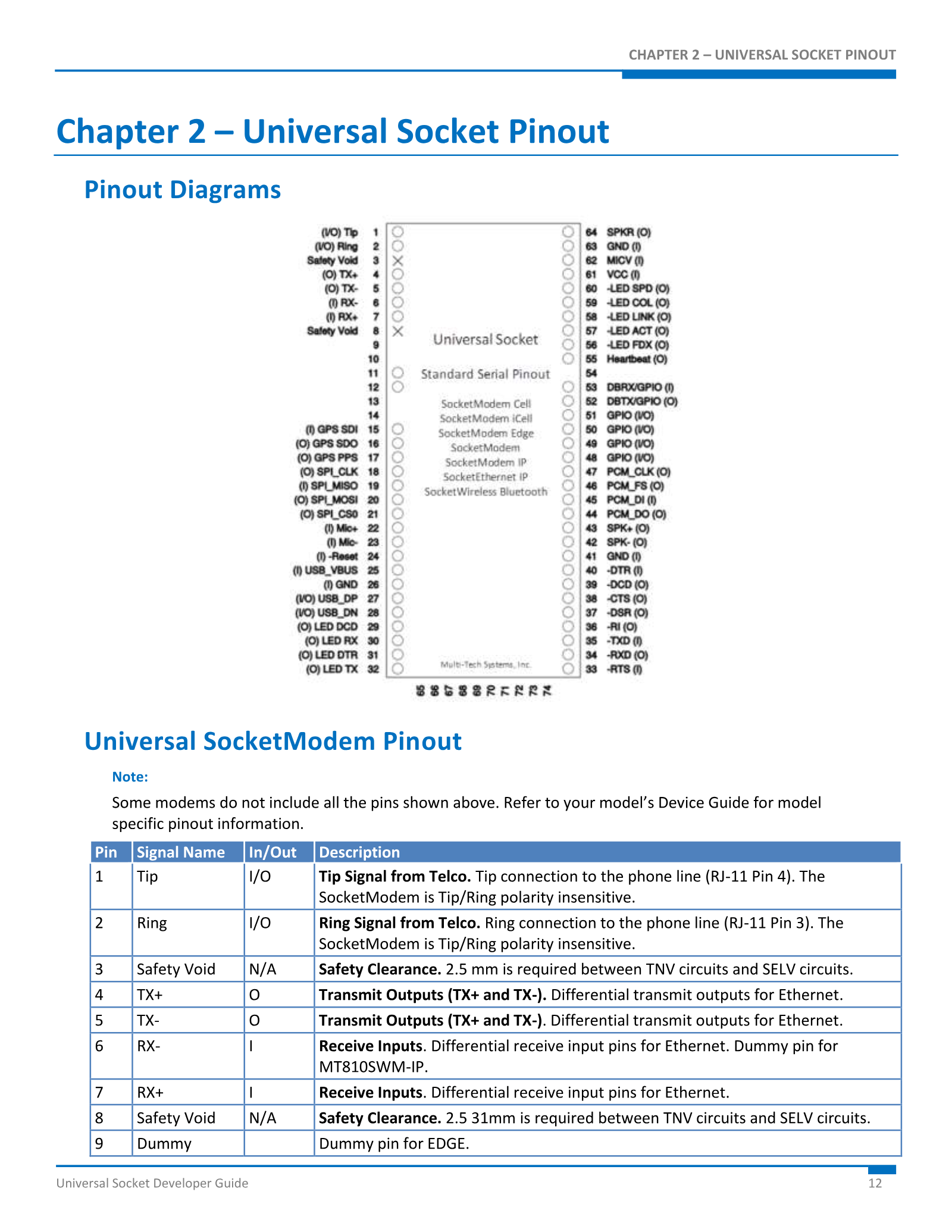

manufacturer reference pinoutMultiTech Universal Socket reference pinout

This is a generic product-family interface reference. The guide says not all modems include every pin; it is not a DS200 carrier-board pin map or proof that any interface is wired or enabled in a DS200.

Universal SocketModem Developer Guide PDF page 12

Multi-Tech Systems, Inc.: Universal SocketModem Developer Guide S000342, Version Wmultitech-universal-socket-guide@2026-07-20

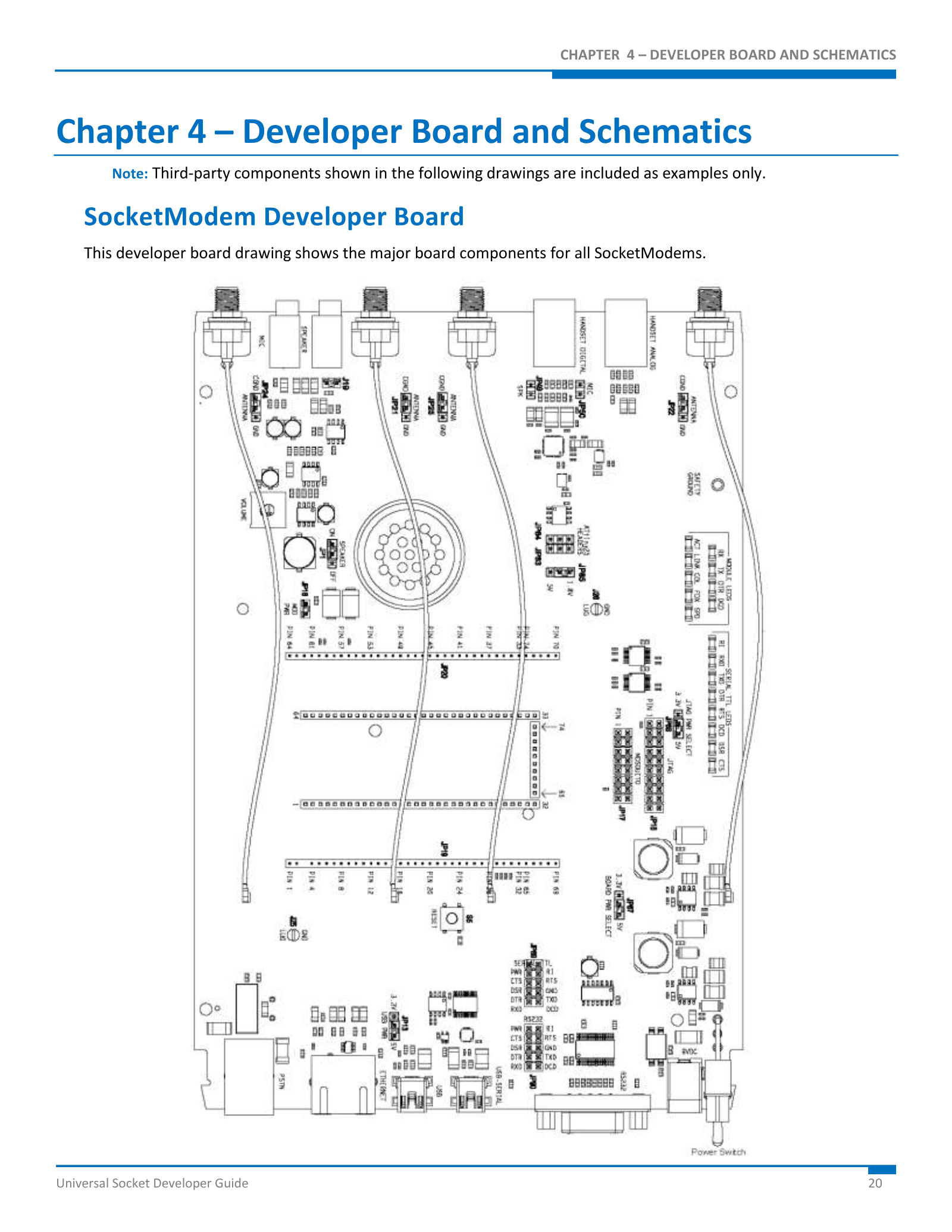

manufacturer reference board drawingMultiTech generic SocketModem developer-board layout

The source labels third-party components as examples and describes a developer board for SocketModems generally. It is not a DS200 carrier-board drawing, teardown, port inventory, or placement record.

Universal SocketModem Developer Guide PDF page 20

Multi-Tech Systems, Inc.: Universal SocketModem Developer Guide S000342, Version Wmultitech-universal-socket-guide@2026-07-20

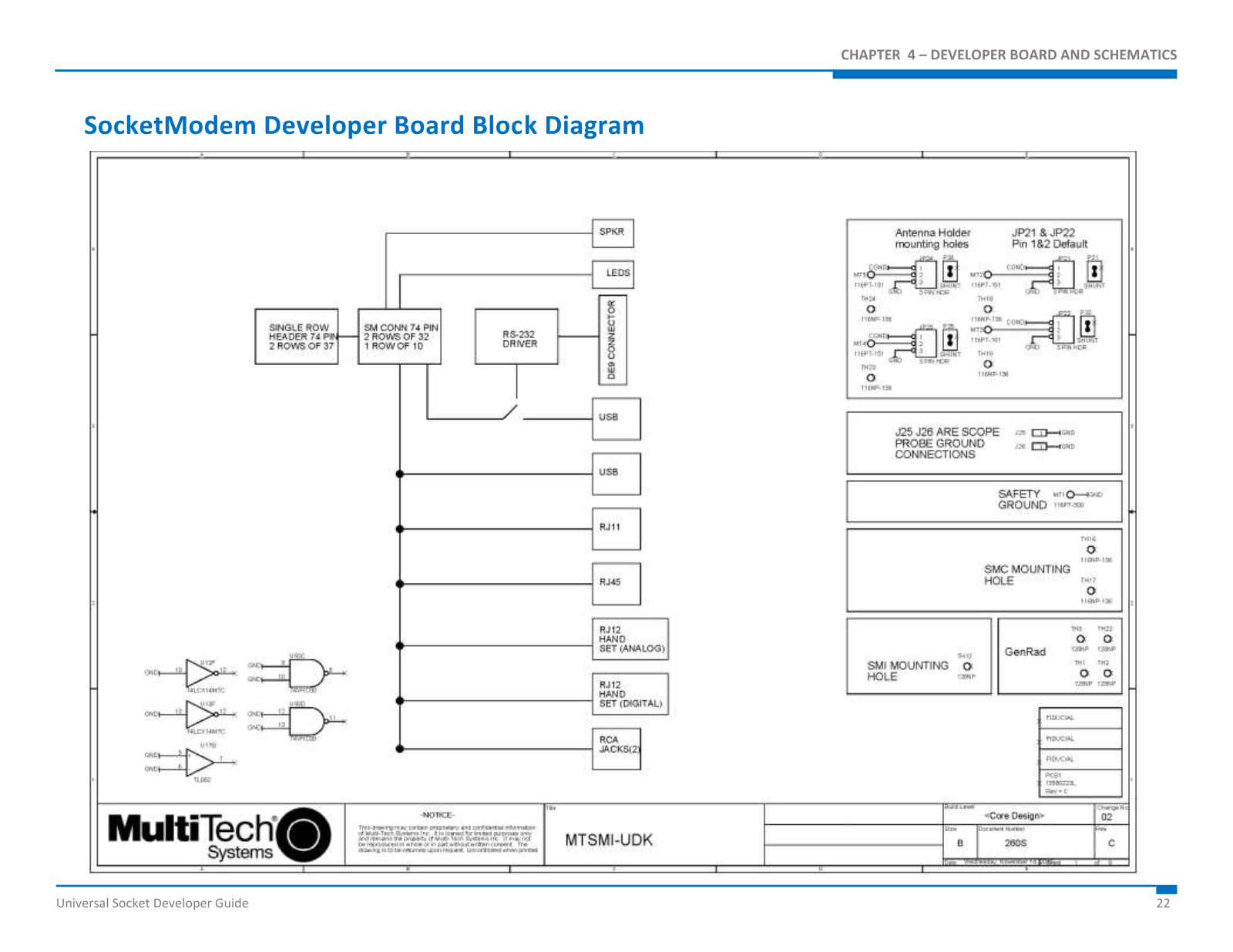

manufacturer reference block diagramMultiTech generic SocketModem developer-board block diagram

This developer-board diagram shows possible reference connections across the broader SocketModem platform. It does not establish which ports exist, are connected, or are enabled on a DS200 modem carrier board.

Universal SocketModem Developer Guide PDF page 22

Multi-Tech Systems, Inc.: Universal SocketModem Developer Guide S000342, Version Wmultitech-universal-socket-guide@2026-07-20

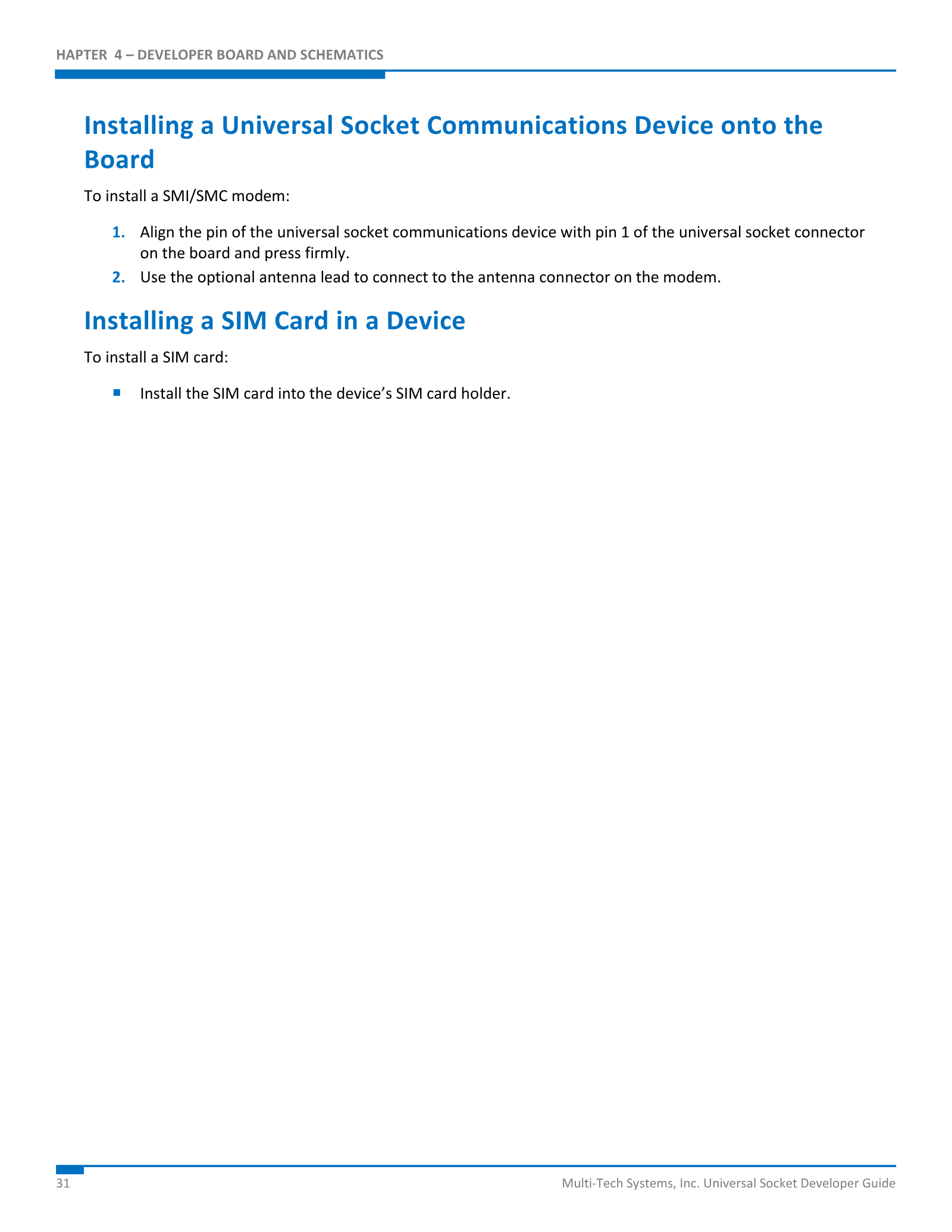

manufacturer reference installation pageMultiTech generic modem, antenna-lead, and SIM installation guidance

This generic procedure establishes product-family installation concepts only. It is not evidence that a DS200 contains a SIM holder, antenna lead, active SIM, or any particular SocketModem model.

Universal SocketModem Developer Guide PDF page 31

Multi-Tech Systems, Inc.: Universal SocketModem Developer Guide S000342, Version Wmultitech-universal-socket-guide@2026-07-20

Evidence gapsUnknowns stay explicit and source-bounded.

Not established

DS200-to-Regional Results handoff

The reviewed exact-version passages do not identify whether the local result handoff used removable media or another mechanism, and they do not establish the DS200 as the VPN endpoint.

The module leaves the local medium unresolved instead of drawing a direct network link.

U.S. Election Assistance Commission: EVS 6.4.0.0 Certificate and Scope of Conformanceeac-evs-6400-scope@2026-07-19

Pro V&V, Inc.: ES&S EVS 6.4.0.0 Certification Test Report TR-01-01-ESS-2023-01.03provv-evs-6400-test-report@2026-07-19

Not established

Field configuration and modem state

No dated jurisdiction network diagram, interface inspection, modem inventory, firmware reading, carrier activation record, or transmission log was collected for a particular DS200.

Optional and historical records must not be presented as field evidence.

U.S. Election Assistance Commission: EVS 6.4.0.0 Certificate and Scope of Conformanceeac-evs-6400-scope@2026-07-19

Florida Department of State, Division of Elections: ES&S EVS Release 4.5.0.0 Version 4 Test Report Addendum (Revision 1)fl-evs-4500-v4-modem-report@2026-07-20

Pro V&V, Inc.; Minnesota Judicial Branch record mirrored by Democracy Docket: EVS 5.3.4.1 Test Report hardware-components table, court-filed Exhibit Aprovv-evs-5341-modem-hardware-table@2026-07-20
