Source-linked configuration dossier
ES&S EVS 6.4.0.0 / DS950
A separate source-linked dossier for the certified DS950 central-count scanner/tabulator, including firmware and hardware revisions, documented motherboard and storage changes, output-transport firmware, central-count cart, and certified UPS alternatives.
Federal certificate ESSEVS6400VVSG 1.0VSTL: Pro V&V, Inc.Editorial: published r3
Source-bounded topology
Documented topology, controls, and unknowns
Expected, documented, and observed configurations remain separate. Physical port capability is not treated as an active connection.
Safe public evidence boundaryReviewed 2026-07-21
The EVS 6.4.0.0 Pro V&V report states that DS950, DS850, and DS450 results were transmitted to the EMS through a closed local area network during accuracy testing. The EAC scope includes the central tabulator, Electionware infrastructure, and a minimum-1-Gb network switch, but it does not establish a jurisdiction's live switch, port, or addressing configuration.
This view publishes only the laboratory-supported closed-LAN result path and its source limits. It excludes IP addresses, credentials, keys, database details, switch settings, VLANs, hostnames, device identifiers, and site-specific routing.1 sourced configuration view2 source imagesNo field-observed topology collected
expected layervstl test configurationdocumented partial
EVS 6.4.0.0 central-tabulator closed-LAN test path
Pro V&V tested DS950 result transmission over a closed LAN to the EMS. The EAC scope separately lists a minimum-1-Gb switch among certified COTS hardware. The public passages support the system-level path but not every physical connector or a field installation.
Topologyclosed wired lan
Preparing the interactive topology…
Accessible topology indexSelect a node or connection without using the canvas.
Select a node or connectionMirrors the interactive topology
documentedClosed LAN
The VSTL report explicitly identifies the DS950 central-tabulator result path as a closed local area network.
not publicly establishedPublic-network path
The reviewed DS950 accuracy-test passage does not describe a public-network transmission path.
not publicly establishedField network state
No jurisdiction switch, port, address, enabled-service, or cable record is established in this dossier.
Operational details withheld
No addresses, credentials, keys, database identifiers, switch settings, VLANs, hostnames, device identifiers, or site routing is collected or displayed.
A VSTL accuracy-test topology is not proof that a jurisdiction connected a DS950, used the listed switch, or transmitted results over a network in a particular election.
U.S. Election Assistance Commission: EVS 6.4.0.0 Certificate and Scope of Conformance
eac-evs-6400-scope@2026-07-19Pro V&V, Inc.: ES&S EVS 6.4.0.0 Certification Test Report TR-01-01-ESS-2023-01.03
provv-evs-6400-test-report@2026-07-19Source diagrams and pagesExpand any image; scope and caveats stay attached.

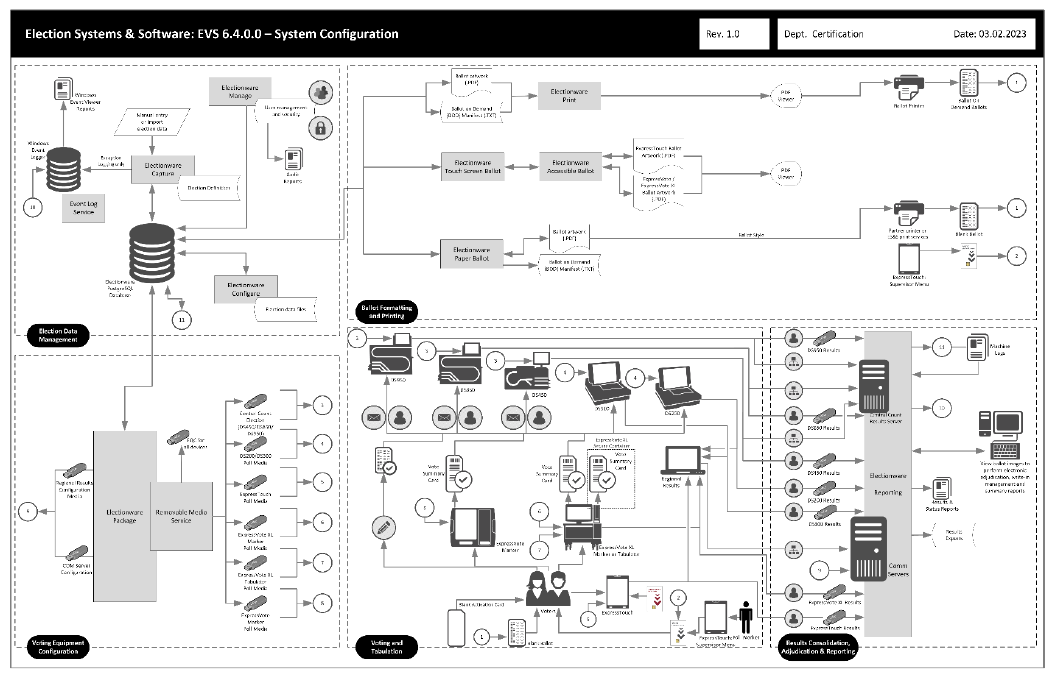

source topology diagramEVS 6.4.0.0 certified-system overview diagram
The system-level figure contains many EVS components and paths. It does not prove that every component or connection is present in a DS950 deployment.
EAC scope PDF page 4, document page 3U.S. Election Assistance Commission: EVS 6.4.0.0 Certificate and Scope of Conformance

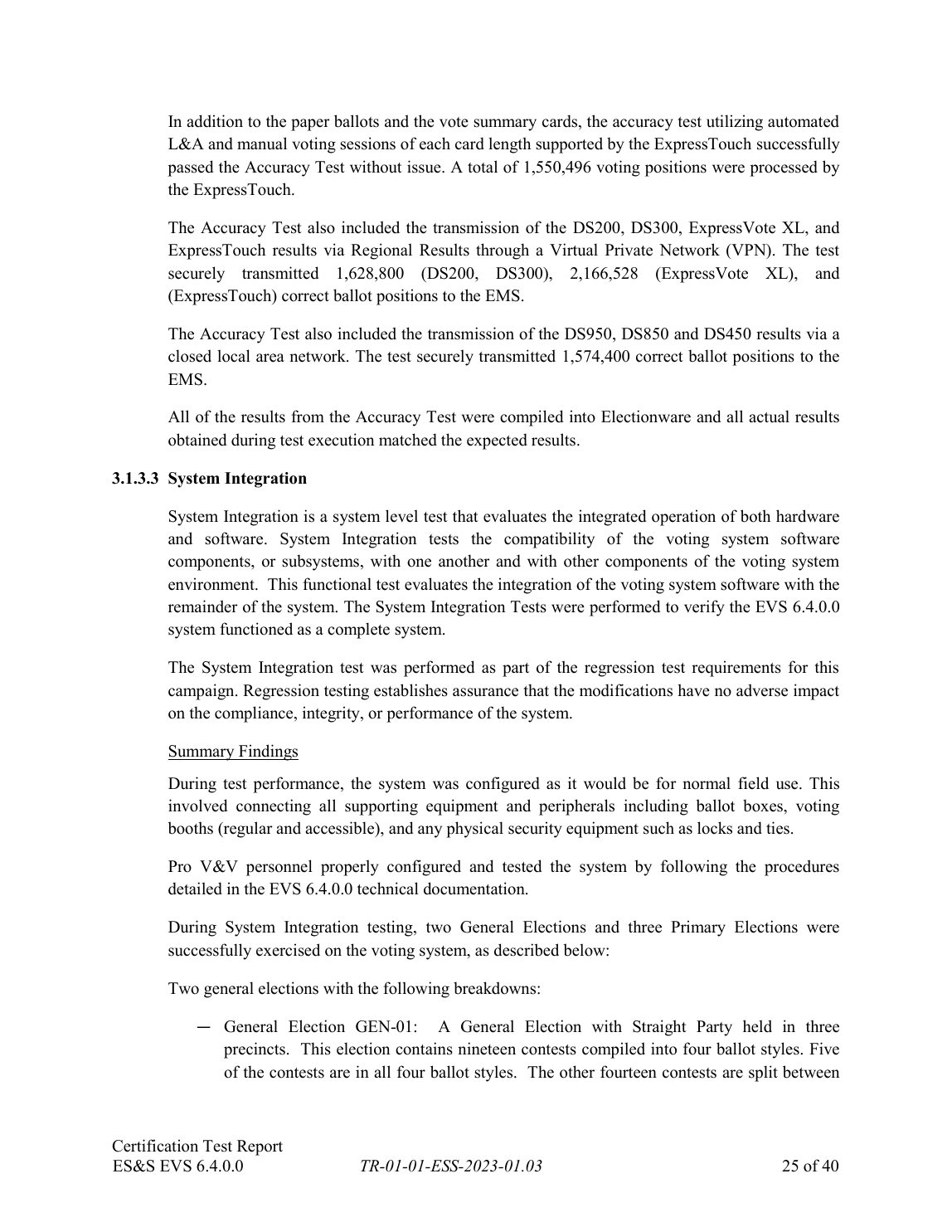

eac-evs-6400-scope@2026-07-19source document pagePro V&V EVS 6.4.0.0 central-tabulator closed-LAN test statement
This is evidence of a laboratory test configuration and successful result transfer, not a jurisdiction deployment record.
Pro V&V test-report PDF page 30, report page 25Pro V&V, Inc.: ES&S EVS 6.4.0.0 Certification Test Report TR-01-01-ESS-2023-01.03
provv-evs-6400-test-report@2026-07-19Evidence gapsUnknowns stay explicit and source-bounded.
Physical interface and switch map
The reviewed public pages do not enumerate the occupied DS950 connector, switch port assignments, addressing, VLANs, or enabled services for the test or a field installation.
System-level closed-LAN evidence must not be expanded into unreported operational details.U.S. Election Assistance Commission: EVS 6.4.0.0 Certificate and Scope of Conformance
eac-evs-6400-scope@2026-07-19Pro V&V, Inc.: ES&S EVS 6.4.0.0 Certification Test Report TR-01-01-ESS-2023-01.03
provv-evs-6400-test-report@2026-07-19Field-observed topology
No dated jurisdiction network diagram, interface inspection, or switch inventory was collected for a particular DS950.
A laboratory path is not a live observation.Pro V&V, Inc.: ES&S EVS 6.4.0.0 Certification Test Report TR-01-01-ESS-2023-01.03
provv-evs-6400-test-report@2026-07-19
