Source-linked configuration dossier
Dominion Democracy Suite 5.17 / ImageCast X
A source-linked dossier for the ImageCast X ballot-marking device within EAC-certified Democracy Suite 5.17, including certified device alternatives, external UPS options, version observations, Pro V&V results, and EAC-hosted post-certification advisories.
Federal certificate DVS-DemSuite5.17VVSG 1.0VSTL: Pro V&V, Inc.Editorial: published r5
Network configuration evidence
Documented paths, controls, and unknowns
Expected, documented, and observed configurations remain separate. Physical port capability is not treated as an active connection.
Safe public evidence boundaryReviewed 2026-07-21
The certified ICX hardware profile includes a physical 10/100 RJ-45 interface on the SID-21V platform, but the Democracy Suite 5.17 test plan says the evaluated system does not use public networks, does not support transmission over public networks, and uses no wireless technology. No external network peer or field connection is established for this ICX dossier.
The module distinguishes physical interface capability from an enabled or used connection. It excludes addresses, credentials, keys, activation-card contents, port settings, hostnames, and site-specific topology.1 sourced configuration view2 source imagesNo field-observed topology collected
expected layervstl test configurationdocumented partial
ICX physical Ethernet capability with certified communications boundary
The SID-21V hardware exposes an RJ-45 interface, while the exact 5.17 test-plan boundary excludes public-network transmission and wireless use. The reviewed record does not identify a certified external peer for the ICX port or show that it is connected in a jurisdiction.
Topologyphysical network capability only
Select a nodeHighlights its documented paths
SID-21V RJ-45 interfaceImageCast X station
Internal connection to a 10/100 RJ-45 physical interface
Expose hardware network capability without establishing an attached external network - documented partialElection and activation mediaImageCast X station
Physical election media and activation cards
Load election configuration and activate voting sessions without treating physical transfer as a network connection - documented partialdocumentedNo public-network use in evaluated system
Pro V&V states that Democracy Suite 5.17 does not utilize public networks.
documentedNo public-network transmission
The test plan states that the evaluated 5.17 system does not support transmission over public networks.
documentedNo wireless technology
The 5.17 test plan states that no wireless technology is utilized in the system.
not publicly establishedExternal Ethernet peer
No external device, service, or network attached to the ICX RJ-45 port is established in the reviewed record.
Operational details withheld
No addressing, credentials, keys, activation-card contents, port configuration, hostnames, or jurisdiction topology is collected or shown.
An RJ-45 connector is capability evidence only. It does not prove that Ethernet is enabled, cabled, assigned an address, attached to a network, or used during an election.
Colorado Secretary of State; Avalue Technology, Inc.: Avalue SID-21V-Z37-A1R User ManualColorado Secretary of State; Dominion Voting Systems: Democracy Suite System Overview 5.17-CO::3U.S. Election Assistance Commission: Democracy Suite 5.17 Certificate and Scope of CertificationPro V&V, Inc.: Democracy Suite 5.17 Test Plan, TP-01-01-DVS-50-01.01
Source diagrams and pagesExpand any image; scope and caveats stay attached.
source topology diagramDemocracy Suite 5.17-CO high-level system block diagram
The page says not every depicted component applies to every jurisdiction, and the document disclaimer excludes modem and transmission functionality from the 5.17-CO campaign.
Colorado system-overview PDF page 21, Figure 2-3source document pagePro V&V 5.17 public-network and wireless boundary statements
The statements define the evaluated system boundary. They do not constitute an inspection of a particular ICX unit or jurisdiction installation.

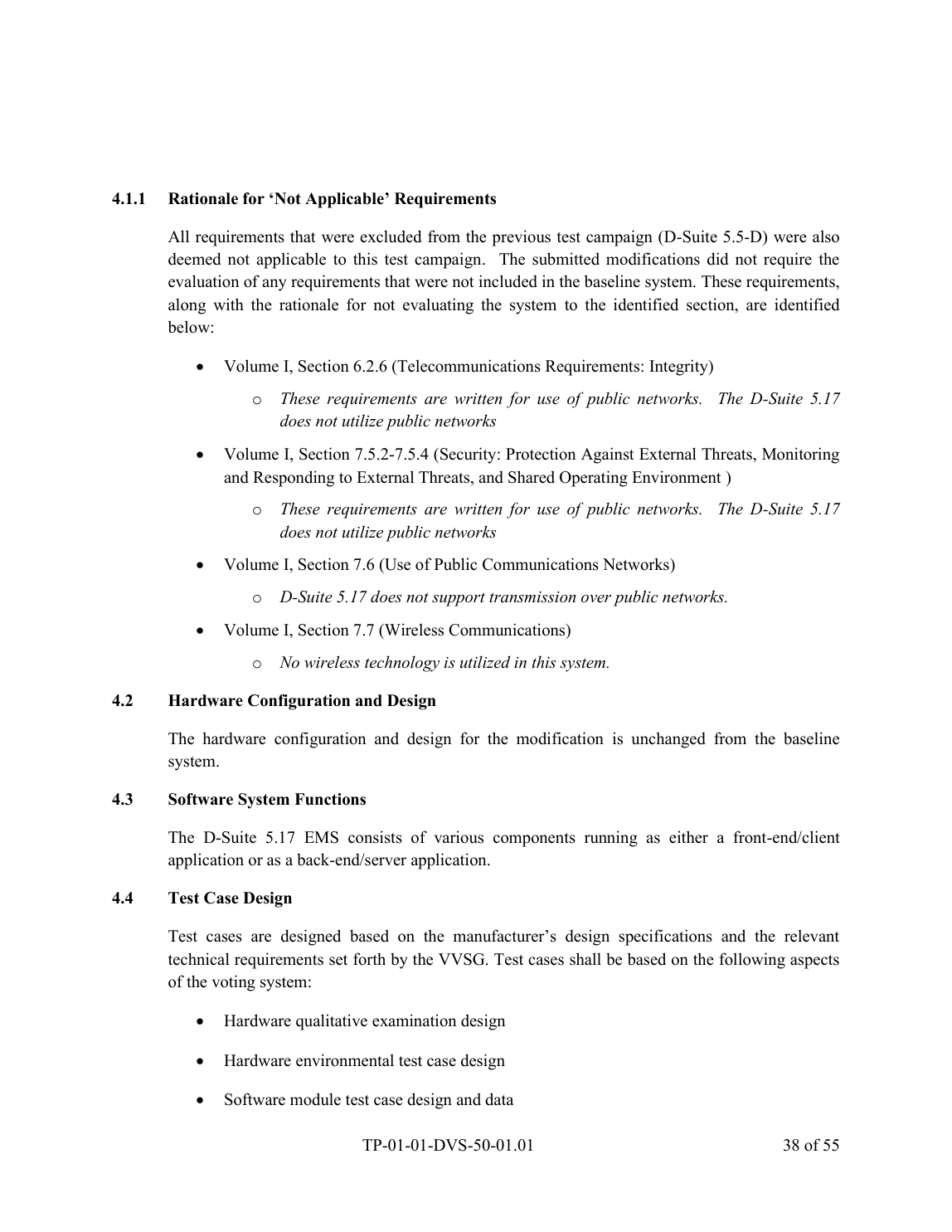

Pro V&V test-plan PDF page 43, report page 38Evidence gapsUnknowns stay explicit and source-bounded.
RJ-45 enabled state and peer
The reviewed public record does not identify an enabled service, external peer, cable, or field use for the physical ICX Ethernet interface.
The gap must not be converted into an assumption that the port is either active or disabled.Field-observed configuration
No dated unit-level interface inspection or polling-place network diagram was collected.
Certified boundary evidence is not a live observation.
